Which Vacuum Brazing Machine Is Right for Your Diamond Tool Production?
2025.04.07

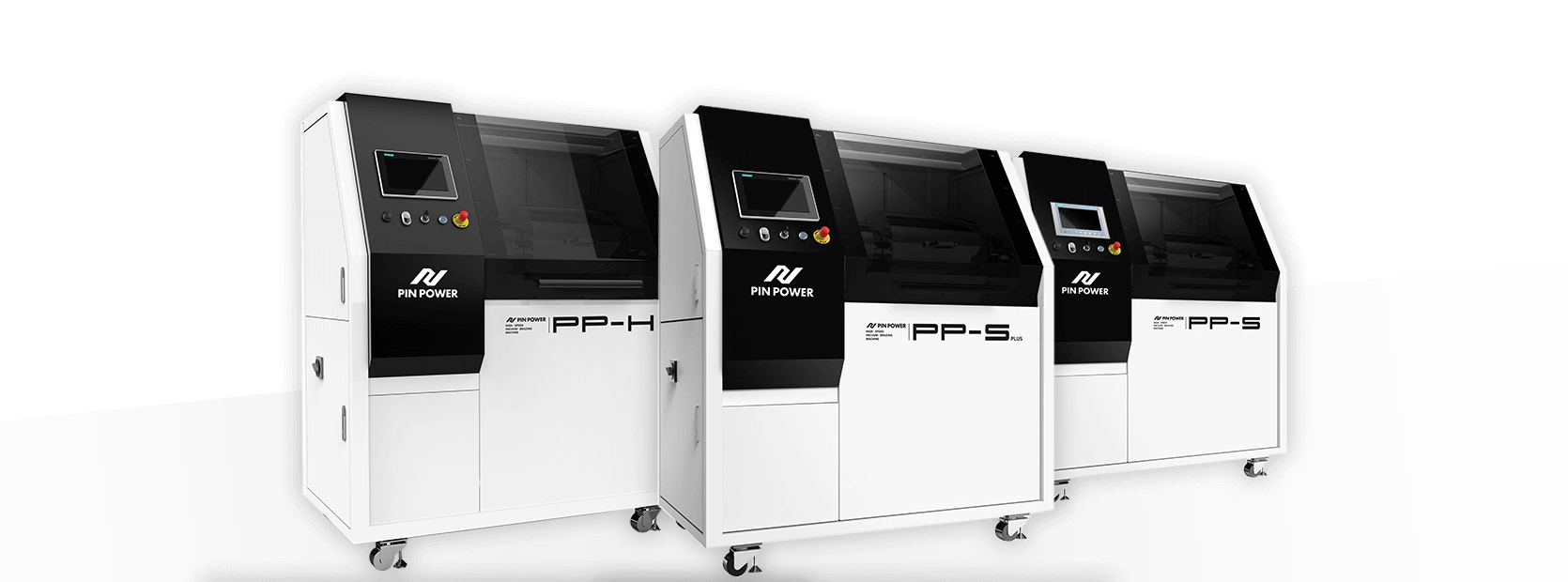

At PIN POWER, we specialize in high-performance vacuum brazing machines designed exclusively for the diamond tool industry. Whether you're working with PCD, CVD, MCD, or natural diamond tools, our PP-S, PP-S Plus and PP-H helps you achieve excellence in production.
PP-S – Compact. Efficient. Cost-Effective. (Chamber Ø 150 mm)
✔︎ Compact footprint with core brazing functionality
✔︎ Economical and easy to operate
✔︎ Automation with advanced control systems
Best fit for: Small production lines or those transitioning from traditional welding.
PP-S Plus – Smart. Enhanced. Connected. (Chamber Ø 150 mm)
Includes all PP-S features, plus:
✔︎ Remote access and data logging
✔︎ Energy metering and cooling system monitoring
✔︎ Discrepancy alerts and maintenance reminders
✔︎ Automation with advanced control systems
Best fit for: Manufacturers scaling up with digital monitoring needs.
PP-H – Advanced. Powerful. Industry-Ready. (Chamber Ø 184 mm)
✔︎ Supports a wide range of tool geometries
✔︎ Industrial-grade automation with robust control
✔︎ All PP-S Plus features included
✔︎ Automation with advanced control systems
Best fit for: High-output facilities and large-scale diamond tool production.
All Models Share the Core Benefits of PIN POWER:
✔︎ No post-brazing cleaning
✔︎ Advanced engineer not required
✔︎ Superior, cleaner, and safer than induction and torch brazing
✔︎ Compatible with PCD, PCBN, CVD, MCD, and natural diamond
✔︎ Short brazing cycles (1–2 hrs) and high reliability
✔︎ Designed with operator safety and easy maintenance in mind
Why Choose PIN POWER’s PP Series?PP-S – Compact. Efficient. Cost-Effective. (Chamber Ø 150 mm)
✔︎ Compact footprint with core brazing functionality
✔︎ Economical and easy to operate
✔︎ Automation with advanced control systems
Best fit for: Small production lines or those transitioning from traditional welding.
PP-S Plus – Smart. Enhanced. Connected. (Chamber Ø 150 mm)
Includes all PP-S features, plus:
✔︎ Remote access and data logging
✔︎ Energy metering and cooling system monitoring
✔︎ Discrepancy alerts and maintenance reminders
✔︎ Automation with advanced control systems
Best fit for: Manufacturers scaling up with digital monitoring needs.
PP-H – Advanced. Powerful. Industry-Ready. (Chamber Ø 184 mm)
✔︎ Supports a wide range of tool geometries
✔︎ Industrial-grade automation with robust control
✔︎ All PP-S Plus features included
✔︎ Automation with advanced control systems
Best fit for: High-output facilities and large-scale diamond tool production.
All Models Share the Core Benefits of PIN POWER:
✔︎ No post-brazing cleaning
✔︎ Advanced engineer not required
✔︎ Superior, cleaner, and safer than induction and torch brazing
✔︎ Compatible with PCD, PCBN, CVD, MCD, and natural diamond
✔︎ Short brazing cycles (1–2 hrs) and high reliability
✔︎ Designed with operator safety and easy maintenance in mind
✔︎ Advanced Automation: Automates brazing, ensuring consistent, high-quality results without requiring skilled labor. Reduces labor costs and enhances operational efficiency, ideal for high-volume production.
✔︎ Comprehensive Monitoring: Advanced remote access, temperature discrepancy alerts, cooling system monitoring for real-time diagnostics and precise adjustments.
✔︎ Energy Efficiency: Equipped with MID Energy Management, tracks energy consumption for sustainability and cost savings.
✔︎ Easy Maintenance: Designed for easy maintenance with annual reminders and accessible components for smooth operations and reduced downtime.
